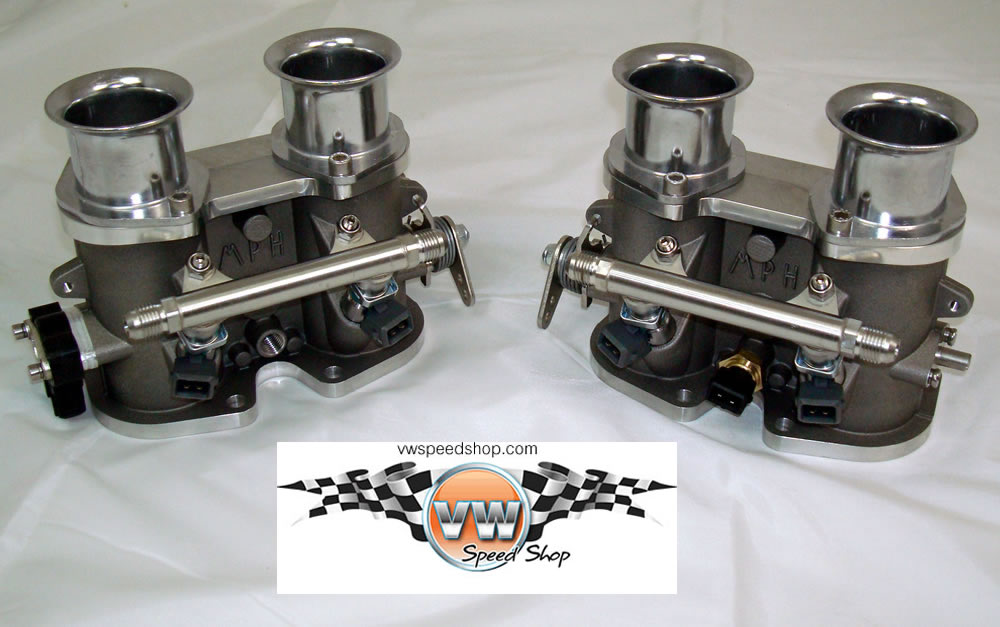

IDF Throttle Bodies

Latest design of IDF throttle body with same height and bolt pattern as the IDF carburettor
Allows easy fitment of standard IDF air filters, base plates and linkages
All sizes have fully machined tapered bore with a diameter of 48mm at the air filter
If using the longer 60mm GM style injectors a spacer plate is used under the air filter
to give clearance to the fuel rail
Air temp sensor is integral and included
M10x1 vac port and M12x1.5 port for air temp sensor ( Bosch)
Stainless steel fuel rails
Throttle position sensor included

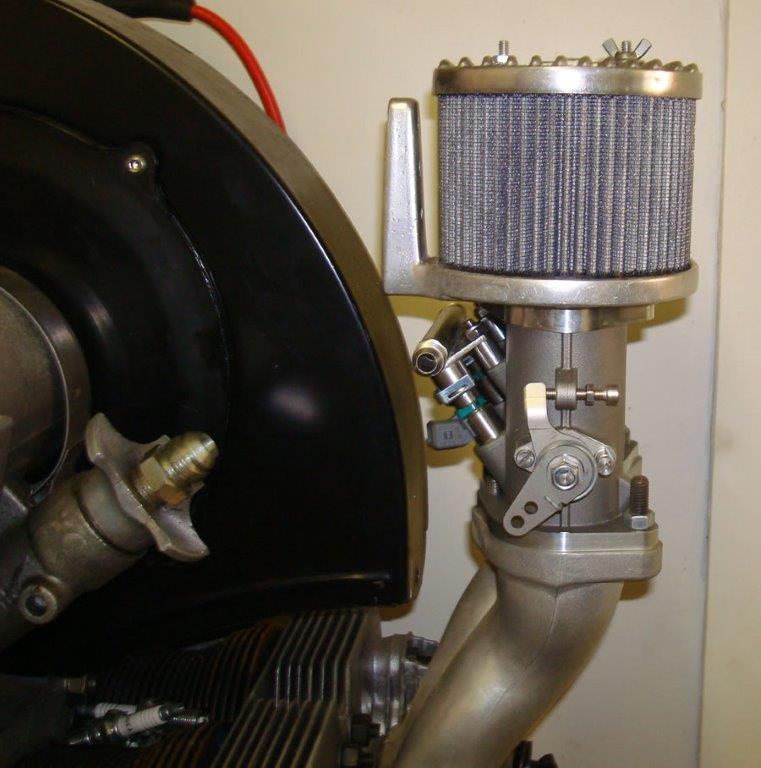

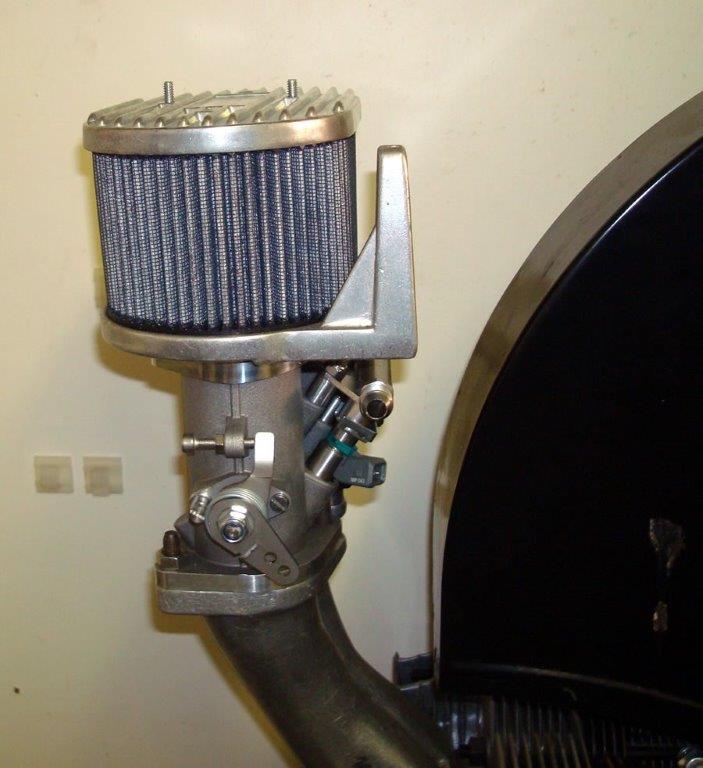

Inside mount injector postion only available in 36mm and 40mm bore
require 36 hp fanhousing see pictures

Price is per pair
